Brace Height

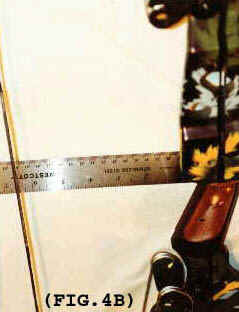

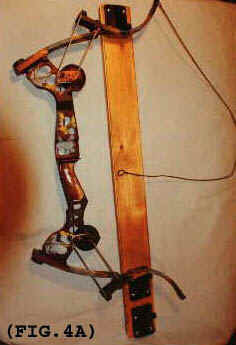

Adjust the brace height by placing bow in an Oneida Bow Press as shown (fig. 4A) The bow press bracket should be set at 23" apart. Twist the string to raise the brace height to specification. Measure as shown, (fig.4B)
| Model | Range | Brace Height | String Length |
| SS | 25"-27.5" | 6.5"-6.75" | 42.5" |
| Short | 26.5"-30" | 7"-7.5" | 43.75" |
| Medium LF | 28"-30" | 6.5"-6.75" | 42.5" |
| Medium | 29.5"-31" | 7"-7.5" | 43.75" |
| Long | 32"-34" | 8"-8.5" | 47.75" |
